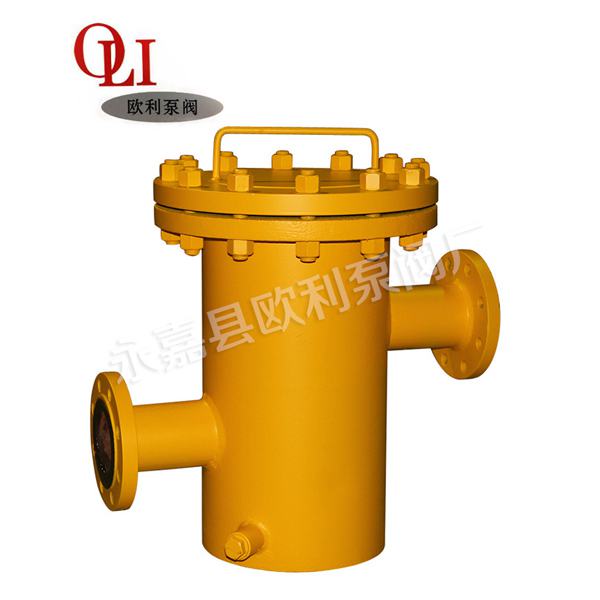

Ammonia with the tube type filter

A, use and performance specification

The valve with high sealing filter screen, filter out impurities and particles on thepipeline fluid medium, to prevent impurities cause damage to the equipment, mainly used for compressor (pump) before and other equipment before, play a role of protection equipment.

Nominal pressure test pressure PN strength of Mpa air seal test pressure Mpa low pressure seal test (Mpa) applicable medium

2.5 3.75 2.75 -40 ~ +80 C

One, main H41N dimensions and connection dimensions:

DN L D D1 D2 D6 B F Z-D H

25160115856558162 4-*14 150

321901351007566182 4-*18 160

402001451108576183 4-*18 175

502301601251008820 4-*18 185

652901801451201102 3 8-*18 200

803101951601351212 3 8-*18 220

100350135190160150 243 8-*23 248

125400270220188176 283 8-*25 380

150480300250218204 303 8-*25 420

200600375310278260 343 12-*25 530

250650445385345313 423 12-*34 610

300750510450408364 464 16-*34 725

Three, the main H42N dimensions and connection dimensions:

DN L D D1 D2 B F Z-D

50140160125100203 4-*18

65160180145120223 8-*18

80185195160135223 8-*18

100210135190160243 8-*23

125250270220188283 8-*25

150300300250218303 8-*25

200380375310278343 12-*25

Description of the operation principle and structure

1, when the fluid along the direction of the arrow through the valve, because the valve flap fluid differential pressure rises, so that fluid smoothly through the valve

2, when the fluid backflow, due to self weight and fluid valve differential pressure, so that the valve clack down and sealed with sealing surface to prevent fluid backflow.

3, the valve is fully closed structure, no dynamic seal, never leakage.

Four, the material of main parts:

Parts name material

The valve body valve cover of carbon steels WCB

The valve sealing surface of 25# nylon 1010

Flange bolt 35CrMoA

The flange nut 35#
